Many industrial and commercial activities emit odours that can become annoying and inconvenience customers and/or neighbours. For this reason, Morgui Clima offers technical solutions focused on reducing odours through the application of activated carbon in different formats depending on the needs.
Activated carbon is a form of carbon processed to have small, low-volume pores that increase the surface area available for adsorption. This characteristic makes it a great ally in adsorbing odours and maintaining clean air.
The design of odour filtration equipment with activated carbon by Morgui Clima achieves a filtration system capable of drastically reducing the intensity of odours caused by different types of volatile organic compounds (hydrocarbons, chlorine, solvents, food handling...).

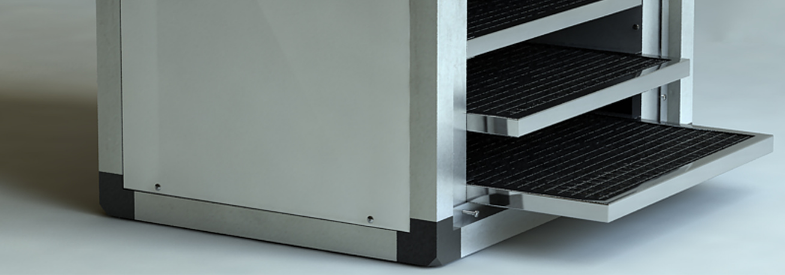

These units are modular, with a metallic structure, and are designed to adapt to multiple fume extraction installations and/or ventilation systems. They incorporate activated carbon filters inside, which can be either granular activated carbon or foam impregnated with activated carbon, type PPI20 of 1,800 g/m². Its capacity will depend on the number of filters it stores and will depend on the requirements of each project. The filters inside, placed horizontally and at a certain distance from each other, cause the polluted air to circulate, forcing the air flow to pass through the filters and be purified before exiting on the opposite side.
Their design allows these units to be easily inserted between the fume extraction ducts and incorporates lateral dampers for convenient and functional maintenance of the activated carbon filters. Morgui Clima odour control units operate under the following application guidelines:
- Temperature: -20º C to 50º C (-4F to 122F).
- Humidity: 10-95% RH
- Performance: Depending on saturation.
Some examples of application of these odour filtration equipment with activated carbon are found in air conditioning machinery, kitchen fume extraction, paint booths or air with low concentration of organic solvents.
In addition, Morgui Clima offers cylindrical activated carbon filters and V-CARB filters, V-shaped, multidihedral and high efficiency filters that are ideal for the deodorisation and purification of gaseous pollutants.
If you already have an odour equipment, possibly the time to renew the filters has come. For a correct maintenance, we have the following products in stock:

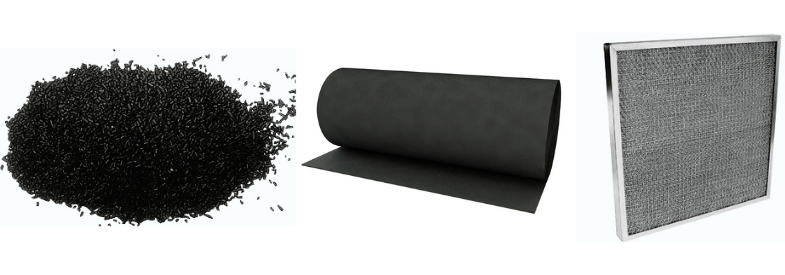

- Grain activated carbon in bags of 25 Kg
- Activated carbon impregnated foam sheets (2x1 m)
- Activated carbon filters with metal frame of 490x490x25 mm
This range of Morgui Clima solutions allows you to maintain healthy work spaces and industrial and/or commercial environments, providing great comfort and keeping the air clean and odour-free.
