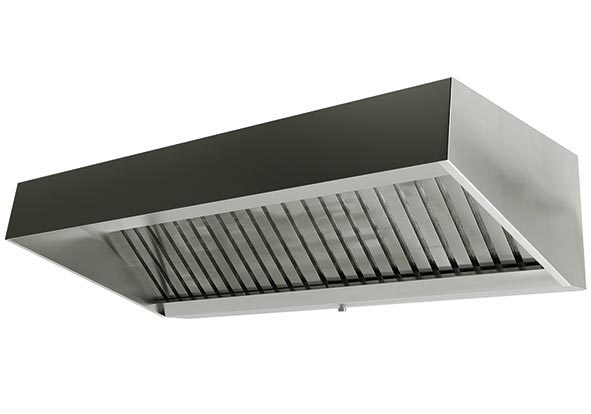

· Morgui industrial extractor hood designed for small industrial kitchens.
· Designed to incorporate direct motor fans inside as long as the heat output of the cooking zone does not exceed 20kW.
· 250mm inclined front visor.
· Special constructions on request.
· Rear height 380mm. It incorporates 6/7 fan.
· AISI 430 stainless plate filters 490x400x25mm included in the price.

TECHNICAL INFORMATION

· Applications: Extraction for small industrial kitchens.
· Format: Wall.
· Construction: Fully welded hood in one piece up to 3m reducing possible linear deformations, eliminating dripping between joints and non-visible points of dirt.
                         Without plenum.
· Material: Parts seen in 1mm thick AISI 304 stainless steel sheet. Roof not seen in galvanized.
· Finishes: Tubular structure for a better robustness of the set.
                  Double folding in all sheet metal ends to avoid all kinds of accidental cuts.
                  No hidden screws or strange edges for easier cleaning.
                  OPTIONAL LUMINARY.
· Grease collector: Perimeter connected to the lower tray without the possibility of dripping.

DOWNLOADS

Technical Data Sheet
Wall Extractor Hoods Manual Installation
Maintenance manual

Morgui Clima SL manufactures its own MORGUI branded hoods specially designed for hostelry sector.
The high quality of it hoods fully welded made them ideal for installations where the quality performance and the finishes are the professional target.
The range of available hoods is very wide with different heights in order to adapt to any installation.
