Water filtration is very useful in smoke extraction systems for embers, whether wood or coal, where soot is generated.

To reduce the size of the soot particles that reach the turbine as much as possible, it is essential to install water filtration equipment before the extraction box.



At Morgui Clima we offer you different options:

1. HIDRO extractor hood: specially designed for barbecues, volcanic lava or charcoal embers, rotisseries or rotisserie chicken ovens, or any application where there is a high temperature that can affect the extractor, or in any kitchen with a high production of grease or waste.

This hood is manufactured with three stages of filtration:

1st stage: designed to filter fats through the refrigerated filters, achieving greater condensation effectiveness and lowering the temperature of the air reaching the extractor.

2nd stage: designed to decant the humidity or droplets that may be aspirated by the fan. The spray nozzles spread a uniform curtain of water. Water consumption is 0.3 l/min per nozzle, at 2 bar pressure and without the need for a pressure pump.

3rd stage: designed to separate the water droplets by means of the 490x400x25mm filters.



2. Water Filter Module (MFVH): it is especially suitable for the decantation and filtration of residues produced in wood or coal-fired ovens. It is designed to be connected to the smoke extraction duct just before the ventilation box.

It consists of three different stages:

  1. Filtration of larger soot particles by means of a plate filter. In addition, the return of water droplets from the atomisers is prevented if the extractor is not switched on by mistake.

  2. Mesh filter to collect the impurities contained in the aspirated air. The filter is completely soaked by the atomisers, filtering any impurities or grease that may remain volatile.

  3. The filter plates filter droplets to prevent them from being expelled through the air outlet. It is supplied with a liquid collection tray with drain, which must be connected to a grease or sludge separator to prevent direct discharge into the sewage system.

3. Water Recirculation System: a complementary system to the 2 previous ones that allows substantial savings in energy and water consumption. By means of a mechanical filtration and another by decantation, this module of exclusive Morgui Clima design allows the water coming from the grease filtration systems to be reused by means of atomised water. If you want to know more details about this product, we invite you to consult the publication in our blog on the occasion of the international water day.



Finally, two last questions you may have asked yourself:

What does a water filtration system imply?

In the first instance, having the possibility of running water to the filtration system and also having a drain. In addition, like all filtration equipment, it requires demanding maintenance.

What are its objectives?

To improve the filtration efficiency, the lifetime of the system and to save energy and money in the long term.


In short, water filtration makes wood or charcoal barbecues compatible with clean, smoke-free spaces.

We are at your disposal for any further information you may require about water filtration.







imagen BLOG EN

Any installation designed to supply, extract or ventilate air must be accompanied by correct filtration. Good filtration allows us to ensure clean and healthy air in enclosed spaces.

In recent years, the presence of filtration equipment in installations has been increasing, and the relevant regulations have been updated and adapted to improve their reliability and standardisation. Regulations are becoming increasingly more demanding and precise with regard to filters, and their efficiency in the filtration of supply air in commercial kitchens.

Complying with these regulations is a commitment to people's well-being and to offer them safety, health and comfort. Installers and customers are increasingly aware of the need for air filtration equipment. Moreover, after the pandemic, its importance is even greater and many clients have asked us for solutions to incorporate in their ventilation systems.

At Morgui Clima we have offered different solutions such as purifiers, electrostatic filters, ozone equipment or active carbon filters, and recently we have added the Kitchen Neat Air (KNA) filtration equipment designed for air intake of different capacities (m³/h).

infografia horiz



This email address is being protected from spambots. You need JavaScript enabled to view it.

It is a unit that incorporates different filtration stages and is installed in the air supply, just before the ventilation box. It offers an average filtration efficiency of around 90%, thanks to the combination of a G4 filter and an F7 filter.

Maintenance is essential to extend the life of the filters, and it is important to renew them periodically. Its registrable system allows an easy maintenance and replacement of the filters when they reach their clogging.

KNA filtration equipment is an affordable option to comply with current regulations, an essential condition in any ventilation and air renewal installation to guarantee healthy and safe environments for people.

E SDG logo without UN emblem Square WEB.png E WEB Goal 03 E WEB Goal 09

Last March, the Council of Ministers approved the update of the Regulation of Thermal Installations in Buildings (RITE). The trend is clear: to design more efficient and intelligent installations. That is why building automation is a key point in every project.

Wireles Produal Proxima transmitter for room interface 2021 02 03 1024x535



Produal is a Finnish company with more than 30 years of experience in building automation, based on high quality, accurate and versatile measurements. It has more than 1000 control, measurement and actuation products with a design that makes them multifunctional, and also ensures easy installation.

Here we would like to highlight some of the latest news of this year:

Gamma Wireless Proxima Expansion
Wireless automation continues to grow. Produal has a broad portfolio of products that operate wirelessly. The Produal Proxima platform offers a 2.4 GHz MESH network that dynamically uses the most available communication frequencies in the building. The MESH platform enables wireless connection between devices using long-life batteries that provide an incredible lifetime for the entire installation.

proxima1

A wireless base unit (WBU) is essential to enable a wireless installation. This is the base station for the input modules and transmitters of the Produal Proxima MESH wireless network. The information can be read with Modbus RTU and TCP or via the 6 analogue outputs.
The base unit is compatible with any Building Management System (BMS).
The range of wireless room transmitters compatible with the Produal Proxima MESH network is diverse, but all are powered by 3.6V batteries or 24V cable. The service life of the batteries is up to 8 years in operation at all times.
A new feature is that the CO₂ measurement has been added to the temperature and humidity measurement. Besides, noteworthy is the -AK model, which has an advanced setpoint knob that includes a display.

proxima2

Finally, Produal's MyTool mobile app allows you to view and configure your installation via Bluetooth. The application is available for Android mobiles and can be downloaded free of charge at the following link.

You can check the range of Produal Wireless Proxima MESH products here.

BACnet connection
Interoperability is becoming increasingly important in building automation. For this reason, the range of products with BACnet language has been extended in 2021. We now have a complete family of multi-sensor room transmitters designed for monitoring temperature, humidity, CO₂ with automatic calibration, light level and occupancy. All of them can be used independently or within the BMS system via BACnet MS/TP communication.

bacnetmodbus

You can look up all the products available with BACnet connection here.

At Morgui Clima we can assist you with any information you need and provide technical advice.

Let us be your reliable partner for measurement and control.

This email address is being protected from spambots. You need JavaScript enabled to view it.



E SDG logo without UN emblem Square WEB.png E WEB Goal 09 E WEB Goal 11

espacios saludables rentables

Nowadays, it is really important to achieve the best ventilation and air quality in work and public spaces such as industrial kitchens, hotels, hospitals or shopping centres.

By incorporating regulation and control in the ventilation system, we can create healthy and comfortable environments that are even more efficient and profitable.

Within the regulation, our main ally is the variable frequency drive. This regulates the speed of electric motors (RPM) so that the electricity reaching the motor is adjusted to the real demand of the application, reducing the energy consumption of the motor between 40 and 50%.

The use of variable frequency drives for intelligent motor control has many operational and environmental benefits, as it improves productivity, increases energy efficiency and at the same time extends the lifetime of the equipment, preventing deterioration and avoiding unexpected stops that lead to downtime. Consequently, this also translates into economic savings, as production efficiency is a direct saving in costs and working time.
Depending on the application, there are various types and models of variable frequency drives. The first parameter to take into account is the input and output voltage, which can be single-phase or three-phase. Other aspects to take into account for a correct choice of frequency converter are the power of the motor (Kw) and its degree of protection (IP).

moreinfo



On the other hand, measurement will help us to analyse results and, consequently, always try to constantly improve. Having equipment that measures air quality allows you to control your installations and act efficiently. A carbon dioxide (CO₂) sensor can be used to evaluate the ventilation of a room. With a CO₂ detector you can optimise ventilation, thermal comfort and ensure a healthy environment. It is recommended to use NDIR (non-dispersive infrared) devices, which have been found to be more reliable and durable. With these devices, not only do we achieve a healthier space, but also, if we know when the air needs to be renewed, we can save energy by activating the ventilation systems only when necessary.

This email address is being protected from spambots. You need JavaScript enabled to view it.



E SDG logo without UN emblem Square WEB.png E-WEB-Goal-09.png E-WEB-Goal-11.png E WEB Goal 13

Originally published in Portal Digital de Eficiencia Energética y Sostenibilidad.

Today, April 7th, is World Health Day and for this reason we would like to share some success stories where we have recently installed AFX9 sensors.

The AFX-9 is the most competitive embedded controller on the market. It is designed for laboratories, climate engineering professionals for clean rooms, industries, data centres, ICU, isolation rooms and operating theatres.
Here is a brief report of some collaborations we have made with the country's healthcare system.

Im inicial

In hospitals
In the last months, several AFX9 sensors have been installed in operating theatres of a well-known Hospital Consortium of “Vallès Occidental”, and also more recently in health centres in the Canary Islands. Their function is to control the differential pressure, temperature and humidity in the operating room in order to maintain constant optimum temperature and humidity conditions, and to prevent the entry/exit of viruses and thus avoid contamination from the outside or the inside of these operating rooms.

This equipment has also been used in isolation rooms in the “Vallès Occidental” hospital for two different purposes: firstly, to control the temperature and humidity in order to guarantee the comfort and well-being of the patient who is admitted. Also, to maintain a depression inside the room and thus prevent the viruses for which it is isolated, such as the SARS-CoV-2 coronavirus that causes Covid-19, from going outside. The second function for which AFX9 is used in some isolation rooms is to ensure just the opposite effect: it is a protective function towards the patient, to prevent viruses and contaminants from entering the patient's room, for example, in those who suffer from immunological diseases and are immunosuppressed, or are undergoing treatment with immunosuppressive drugs, such as chemotherapy.

In all cases, customers who purchased these devices, given the pandemic situation, were widely satisfied for the reduced delivery time. Some equipment was delivered in less than 48 hours from the factory.
We would like to point out that these devices integrate the control function and this allows optimization of their BMS system (e.g. an SCADA). In addition, the equipment is so easy to configure, which made it unnecessary to send a technician on site to do the programming/installation of the equipment.



Covid-19 vaccine storage
During January, with the arrival of the first Moderna vaccines, one of the challenges was to set up controlled storage rooms before the vaccines landed at Barajas. In record time, we shipped 15 units of AFX9 controllers to the laboratories that acted as a receiving and logistics centre in Madrid.
In this case, the equipment was used to monitor and control the pressure, temperature and humidity variables to correctly conserve the vials of the Moderna vaccine against Covid-19 while it is distributed to the rest of Spain. The vaccine can be stored for up to six months at -20 °C, or up to thirty days at temperatures of 2-8 °C (common in most domestic refrigerators).
We are pleased to have done our bit with this collaboration because of the current importance of the vaccination campaign and its impact on collective health.

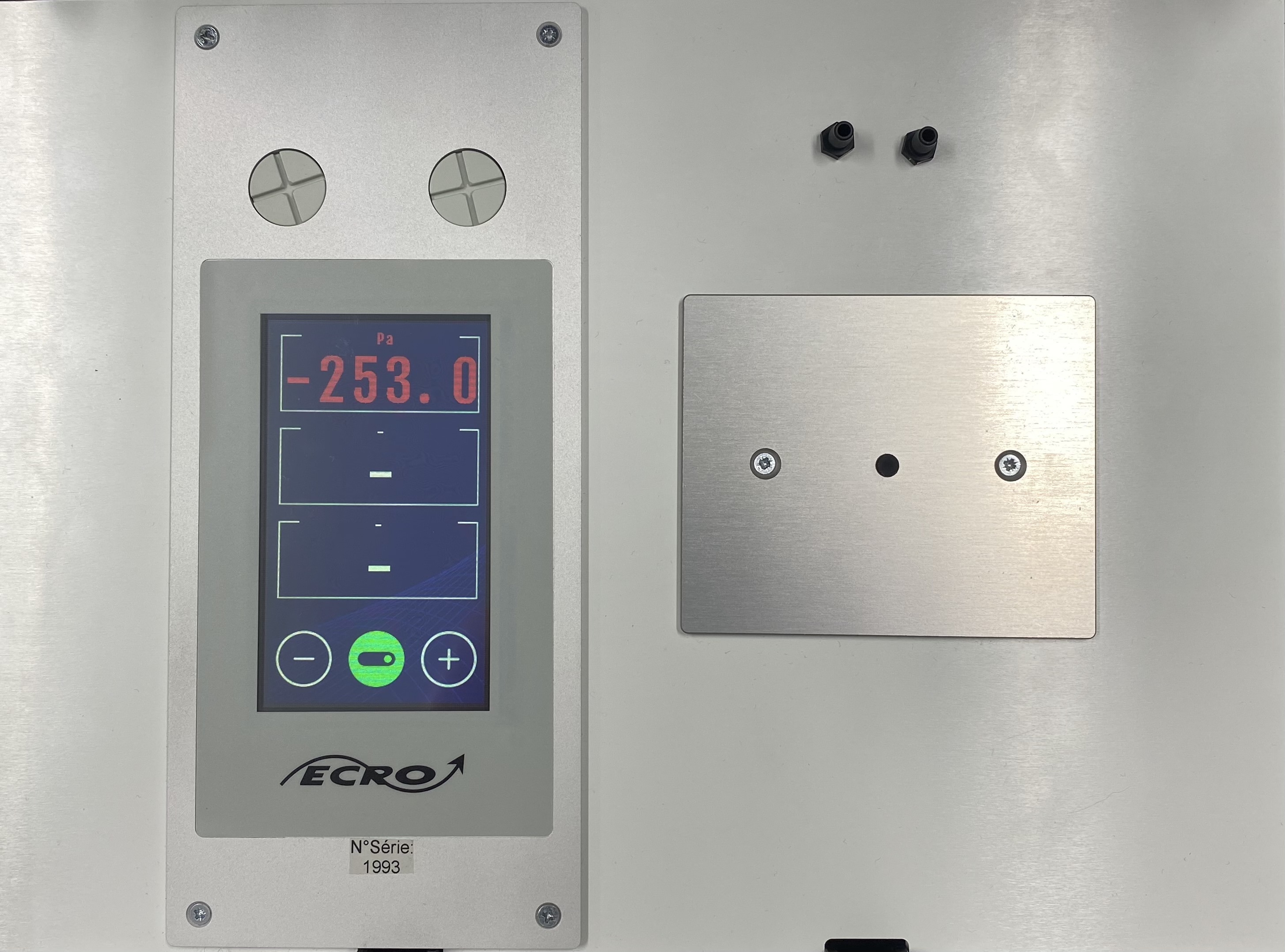

Im final



ECRO's AFX9 sensor, manufactured in France, is now an essential element in this type of installation throughout Europe. It is increasingly on demand, not only because of the technical advantages mentioned above, but also because of the large stock and fast delivery offered by the manufacturer throughout Europe.

This email address is being protected from spambots. You need JavaScript enabled to view it.



E SDG logo without UN emblem Square WEB.png   E WEB Goal 03
